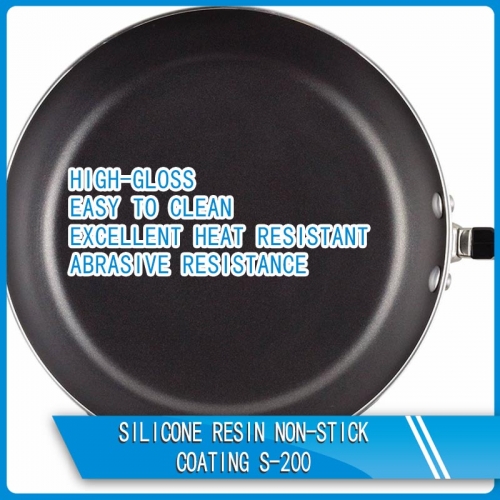

Silicone resin non-stick coating S-200

S-200 is particularly designed for baking operation, and features extraordinarily glossy surface, outstanding stain resistance, non-stick performance and superior scratch resistance. The surface is easy to clean after baking operation. It has a very good operability, it is workable at 200℃, can be widely applied on the inside coating of iron bakeware.

  • Brand:

    sinograce
  • item no.:

    S-200
  • Payment:

    L/C、D/A、D/P、T/T、MoneyGram、Paypal other.
  • product origin:

    China Anhui
  • Color:

    Yellowish clear liquid
  • shipping port:

    Shanghai and other ports
  • Lead Time:

    15-25 Days
inquire
Product Detail

Description

Silicone resin non-stick coating S-200 is particularly designed for baking operation, and features extraordinarily glossy surface, outstanding stain resistance, non-stick performance and superior scratch resistance. The surface is easy to clean after baking operation. It has a very good operability, it is workable at 200℃, can be widely applied on the inside coating of iron bakeware.


Type

Solvent based silicone resin


Key features

-High-gloss

-Excellent heat resistant

-Excellent chemical resistance and abrasive resistance

-Excellent and lasting non-stick performance, easy to clean


Typical properties

Appearance:                                   Yellowish clear liquid

Solid content (%):                           35±1

Viscosity (cp):                                  400~800 Primer

Density (g/ml):                                 1.10

pH:                                                   8-10

Color of the film surface:                  Black with metallic (Flat and smooth)

Curing temperature (℃):                  280-300

Gloss (60° glossimeter):                  10-20

Film thickness (μm):                         15-20

Non-stick performance:                    >5 cycles (Fry eggs at 170±10℃)

Corrosion resistance:                       No blister (Boling 3% HAc for 1 hours)

Abrasion resistance 3KG/21cm2:     No blister

Hardness (ZHONGHUA pencil):         3H-5H


Application

-Bakeware made of aluminum, stainless and carbon steel


Storage and handling

-Available in 20 kg/ barrel or 30 kg/ barrel

-Store products in tightly closed original containers at 5-40℃

-Shelf life: 9 months from delivery date

-According to non-dangerous goods transport


HOW TO USE

1. Requirement on pre-treatment

-Firstly, apply high-temperature degreasing, then wash with 1%~3% NaOH solution (60℃) for more than 6 minutes. Then dry it after water rinsing;

2. Preparation of the coating
-Dispersion of coating: the coating must be fully dispersed before operation by stirring;

-Viscosity adjustment: the viscosity could be adjusted according to different spray methods. Dilute with special thinner if the viscosity is over high;

-Coating filtration: filtrate the coating with screen (200-400 mesh) before using.

3. Application

-The spraying environment should be dry, well-ventilated, no smoking and fire;

-Use electrostatic spraying and dry out the workpieces at 100-150℃;

-Adjust atomization and oil pump capacity of spray gun. Make sure the unit it clean and level. Keep the thickness is within 15μm-20μm;

-Dry the workpieces at 280℃ for 5-10min.


Non-stick Coating Type

↓ ↓ ↓ Please click product model for more informations

Model Layer Thickness Curing temperature Non stick property Anti-corrosion Abrasion resistant
  Water based fluororesin non-stick coating
PF-600 2 25-40 380-400 A A A A A A A A A A A A
PF-601 2 25-35 380-400 A A A A A A A A A A A
PF-602 2 25-40 380-400 A A A A A A A A A A A A
PF-610 3 20-35 380-420 A A A A A A A A A A A A A
PF-611 3 20-35 380-420 A A A A A A A A A A A A A
PF-612 3 20-35 380-420 A A A A A A A A A A A A A
  Water based ceramic non-stick coating
C-104 1 30-45 280-300 A A A A A A A A A A A A A A
C-105 1 30-45 280-300 A A A A A A A A A A A A A A
C-106 2 34-50 280-300 A A A A A A A A A A A A A A
C-107 1 12-20 250-280 A A A A A A A A A A A A A A
C-108 2 34-50 280-300 A A A A A A A A A A A A A A
C-109 2 34-50 280-300 A A A A A A A A A A A A A A
  Silicone resin non-stick coating
S-200 1 15-20 280-300 A A A A A A A A A A A A A
S-201 1 15-20 280-300 A A A A A A A A A A A A A A
S-202 1 15-20 280-300 A A A A A A A A A A A A A
